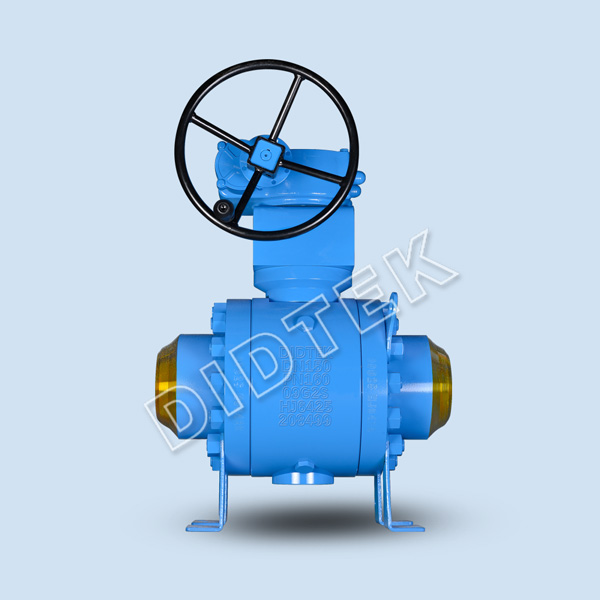

09G2S Metal Seated Butt Welded Trunnion Ball Valves

Size Range

2"~48"

Temperature Range

-196℃~650℃

Pressure Rating

ASME CL, 150, 300, 600, 900, 1500, 2500

09G2S Metal Seated Butt Welded Trunnion Ball Valves

Features & Benefits

1. Double Sealing (double Piston)
2. Safety Relief Device
3. The 2-piece flanged end floating ball valve from Kinvalve is available in stainless steel and carbon steel bodies.
4. Available in sizes form 1/2″ – 12″, they come with an ISO 5211 mounting pad for automatic actuation.
5. Meeting all Class requirements, this ball valve is relatively affordable and offers excellent versatility in application.
6. Didtek’s full-port design, flanged end 3-piece floating ball valves are ideal for the safest inline maintenance.
7. The valves come with a blowout-proof stem design.

Specit fications

Didtek Trunnion Ball Valve is used to cut off or connect the media in various of Class150~Class2500. This 3 piece forged steel Trunnion Mounted Ball Valve is ideally suited for pipeline and other applications within the global energy infrastructure where zero leakage positive shutoff is critical. API Monogrammed and compliant with all relevant industry specifications, Didtek Trunnion Ball Valves are an ideal component to any piping network.

Size Range

2'' to 48''

Body Materials

09G2S

Temperature Range

-196 to 650°C

Stem Materials

ASTM A479 Type 410
17-4PH
XM-19
ASTM A182 F316

Maximum Allowable Operating Pressure

ASME CL150, 300, 600, 900, 1500, 2500

Seat Materials

RPTFE, Nylon, Devlon, PEEK, Tek-Fil, TFM

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A105 w/ENP
ASTM A350 Gr. LF2 w/ENP
ASTM A182 Gr. F316
ASTM A182 Gr. F316 w/ENP

Body Style

Three Piece

Design Standard

API 6D, BS5351, ASME B16.34

End Connections

Flanged

Testing Standard

API 598, API 6D

Certifications

Lioyd's CE, Lioyd's UKCA, EAC, ISO 9001, API 6D, API 6FA

Ports

Full

Face to Face

ASME B16.10, API 6D

Applications

Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, Emergency Shutdown, Suction and Discharge Isolation, Block and Bypass, Pumping, Compression and Reinjection Units, Metering Stations, Pig Traps, Surge-Relief Skids, Decoking Isolation, Buried Services, Produced Water (Brine) Services
