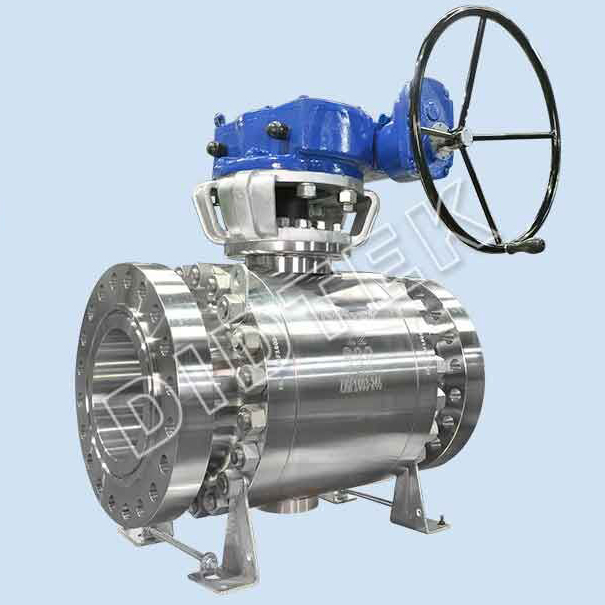

F51 High Temperature Duplex Stainless Steel Ball Valve

Size Range

2"~48"

Temperature Range

-196℃~650℃

Pressure Rating

ASME CL, 150, 300, 600, 900, 1500, 2500

F51 High Temperature Duplex Stainless Steel Ball Valve

Features & Benefits

1. Structure : 2 pieces or 3 pieces body
2. High shut-off sealing mechanism and low torque operation
3. Block and bleed function
4. Self-cavity pressure relief
5. Fire safe design
6. Blow out proof stem construction
7. Anti-static design
8. Locking device (for lever handle operation)
9. ISO 5211 actuator mounting
10. Emergency grease injection (option)
11. PN design can be available

Specit fications

Didtek Forged Trunnion Ball Valve designed the Side-Entry Trunnion-Mounted Ball Valves to assure bi-directional sealing of the valve with two independent floating seats.  The design of these seats minimizes the torque required to operate the valve without losing the sealing power.  This power is assured by zero differential pressure to the valve’s maximum rated pressure.

Size Range

2'' to 48''

Body Materials

F51

Temperature Range

-196 to 650°C

Stem Materials

ASTM A479 Type 410
17-4PH
XM-19
ASTM A182 F316

Maximum Allowable Operating Pressure

ASME CL150, 300, 600, 900, 1500, 2500

Seat Materials

RPTFE, Nylon, Devlon, PEEK, Tek-Fil, TFM

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A105 w/ENP
ASTM A350 Gr. LF2 w/ENP
ASTM A182 Gr. F316
ASTM A182 Gr. F316 w/ENP

Body Style

Three Piece

Design Standard

API 6D, BS5351, ASME B16.34

End Connections

Flanged

Testing Standard

API 598, API 6D

Certifications

Lioyd's CE, Lioyd's UKCA, EAC, ISO 9001, API 6D, API 6FA

Ports

Full

Face to Face

ASME B16.10, API 6D

Applications

Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, Emergency Shutdown, Suction and Discharge Isolation, Block and Bypass, Pumping, Compression and Reinjection Units, Metering Stations, Pig Traps, Surge-Relief Skids, Decoking Isolation, Buried Services, Produced Water (Brine) Services
