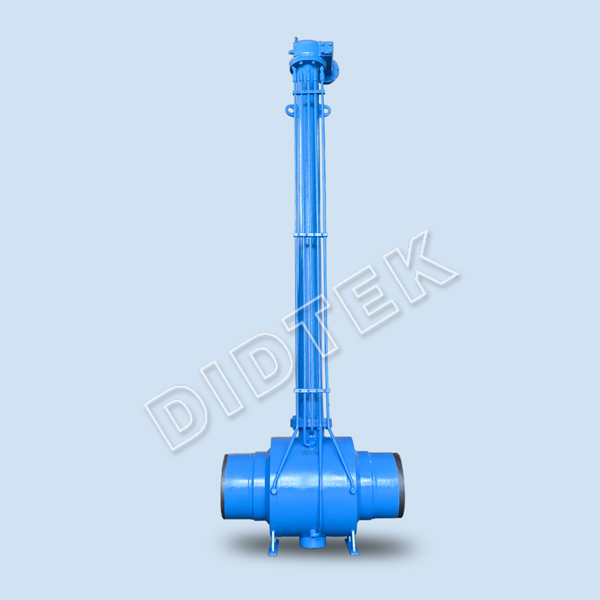

LF2 Cryogenic Extended Stem Extend Spindle ball valve

Size Range

2"~48"

Temperature Range

-196℃~650℃

Pressure Rating

ASME CL, 150, 300, 600, 900, 1500, 2500

LF2 Cryogenic Extended Stem Extend Spindle ball valve

Features & Benefits

1. Fully Welded Ball Valve (welded body ball valve) gives it maximum strength at minimum weight as well as maximum resistance both to pipeline pressures and stresses.
2. The compact, spherical design also eliminates body flanges, thus reducing overall size and leak paths.
3. Fully Welded Ball Valve (welded body ball valve) are ideal for buried service applications to decrease potential leak points and reduce the potential of fugitive emissions from flanges.
4. Typical for underground and buried installation.
5. Various testing procedures are used to confirm the tightness of the entire ball valve.

Specit fications

Didtek Fully Welded Ball Valve have been designed with welded body, including two welding line and one welding line, floating mounted ball and trunnion mounted ball. This type of valves are mainly used Natural gas , without any leakage from body outside.

Size Range

2'' to 48''

Body Materials

LF2

Temperature Range

-196 to 650°C

Stem Materials

ASTM A479 Type 410
17-4PH
XM-19
ASTM A182 F316

Maximum Allowable Operating Pressure

ASME CL150, 300, 600, 900, 1500, 2500

Seat Materials

RPTFE, Nylon, Devlon, PEEK, Tek-Fil, TFM

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A105 w/ENP
ASTM A350 Gr. LF2 w/ENP
ASTM A182 Gr. F316
ASTM A182 Gr. F316 w/ENP

Body Style

One Piece

Design Standard

ASME B16.34 / API 6D / BS 5351

End Connections

Butt Weld

Testing Standard

API 598, API 6D

Certifications

Lioyd's CE, Lioyd's UKCA, EAC, ISO 9001, API 6D, API 6FA

Ports

Reducer

Face to Face

ASME B16.10, API 6D

Applications

Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, Emergency Shutdown, Suction and Discharge Isolation, Block and Bypass, Pumping, Compression and Reinjection Units, Metering Stations, Pig Traps, Surge-Relief Skids, Decoking Isolation, Buried Services, Produced Water (Brine) Services
