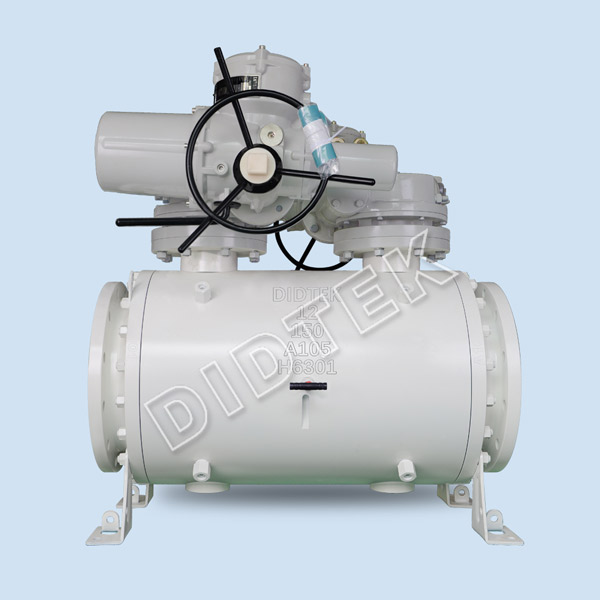

Double Electric Operator Forged DBB Ball Valve

Size Range

2"~48"

Temperature Range

-196℃~650℃

Pressure Rating

ASME CL, 150, 300, 600, 900, 1500, 2500

Double Electric Operator Forged DBB Ball Valve

Features & Benefits

1. Initial and installation cost savings owing to reduced structural requirements of design that saves both space and weight.
2. Increased system reliability from single valve with bleed port between two valves.
3. Improved plant and personnel safety due to anti-blowout stem, fire-safe construction and anti-static design.

Specit fications

Didtek Double Block and Bleed Ball Valve is a combination of one or more block/isolation ball valves, and one or more bleed/vent valves, usually ball or needle valves.  Double block and bleed valves operate on the principle that isolation can be achieved from both the upstream and downstream process flow / pressures.  This is achieved by two ball, gate, globe, needle, etc.  Valves placed back to back, with a third “isolatable” Valve in the centre cavity.

Size Range

2'' to 48''

Body Materials

A105

Temperature Range

-196 to 650°C

Stem Materials

ASTM A479 Type 410
17-4PH
XM-19
ASTM A182 F316

Maximum Allowable Operating Pressure

ASME CL150, 300, 600, 900, 1500, 2500

Seat Materials

RPTFE, Nylon, Devlon, PEEK, Tek-Fil, TFM

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A105 w/ENP
ASTM A350 Gr. LF2 w/ENP
ASTM A182 Gr. F316
ASTM A182 Gr. F316 w/ENP

Body Style

Three Piece

Design Standard

API 6D, BS5351, ASME B16.34

End Connections

Flanged

Testing Standard

API 598, API 6D

Certifications

Lioyd's CE, Lioyd's UKCA, EAC, ISO 9001, API 6D, API 6FA

Ports

Full

Face to Face

ASME B16.10, API 6D

Applications

Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, Emergency Shutdown, Suction and Discharge Isolation, Block and Bypass, Pumping, Compression and Reinjection Units, Metering Stations, Pig Traps, Surge-Relief Skids, Decoking Isolation, Buried Services, Produced Water (Brine) Services
