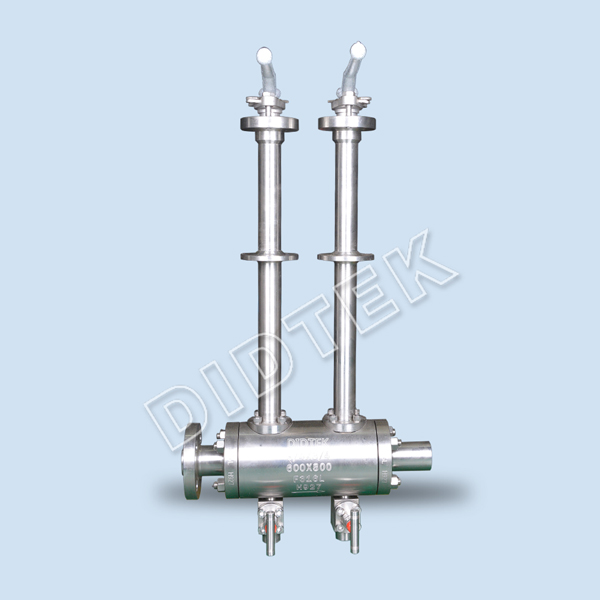

LNG Cryogenic DBB Ball Valve

Size Range

2"~48"

Temperature Range

-196℃~650℃

Pressure Rating

ASME CL, 150, 300, 600, 900, 1500, 2500

LNG Cryogenic DBB Ball Valve

Features & Benefits

1. Floating or trunnion mounted ball valves in main bore, each valve is bi-directional and designed for full differential pressure at ambient and low temperature. For main bore valve general features see the ball valve sections (floating ball or trunnion ball).
2. Full die forged structure for all pressure containing parts.
3. Integral body comprising of two ball valves through main bore with a needle bleed valve from the cavity between the two ball valves. Housing design can be split body or end entry (end entry cannot be feasible for all range).
4. Standard primary gasket design is Lip-Seal type, secondary emergency seal always provided for fire-safe purpose.
5. High quality sealing products and reduced leakage points.
6. Improved safety in operations, space and weight.

Specit fications

Didtek manufactures Double Block and Bleed Ball Valve in an extensive range of designs, materials, sizes, pressure classes and end connections that are designed in accordance to ASME B16.34 and where applicable API 6D or BS EN ISO 17292. The valves are fire-safe test approved and include design features to ensure electrical continuity between ball, stem and body.

Size Range

2'' to 48''

Body Materials

F316L

Temperature Range

-196 to 650°C

Stem Materials

ASTM A479 Type 410
17-4PH
XM-19
ASTM A182 F316

Maximum Allowable Operating Pressure

ASME CL150, 300, 600, 900, 1500, 2500

Seat Materials

RPTFE, Nylon, Devlon, PEEK, Tek-Fil, TFM

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A105 w/ENP
ASTM A350 Gr. LF2 w/ENP
ASTM A182 Gr. F316
ASTM A182 Gr. F316 w/ENP

Body Style

Three Piece

Design Standard

API 6D, BS5351, ASME B16.34

End Connections

Flanged

Testing Standard

API 598, API 6D

Certifications

Lioyd's CE, Lioyd's UKCA, EAC, ISO 9001, API 6D, API 6FA

Ports

Full

Face to Face

ASME B16.10, API 6D

Applications

Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, Emergency Shutdown, Suction and Discharge Isolation, Block and Bypass, Pumping, Compression and Reinjection Units, Metering Stations, Pig Traps, Surge-Relief Skids, Decoking Isolation, Buried Services, Produced Water (Brine) Services
