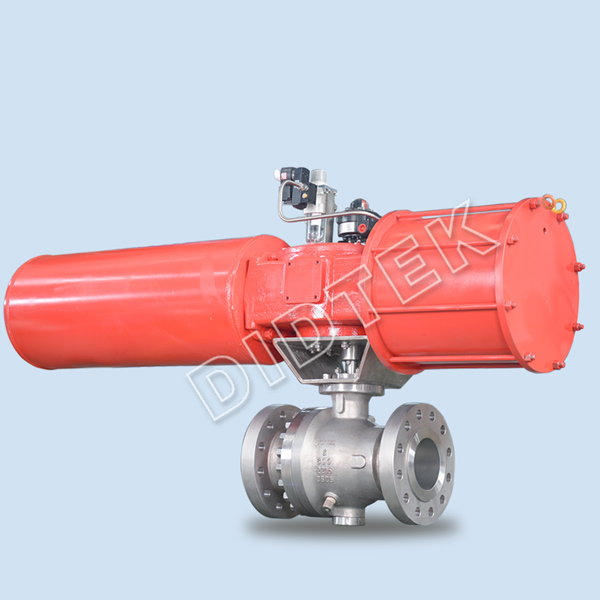

4A Anti-explosion Duplex Pneumatic Ball Valve

Size Range

2"~48"

Temperature Range

-196℃~650℃

Pressure Rating

ASME CL, 150, 300, 600, 900, 1500, 2500

4A Anti-explosion Duplex Pneumatic Ball Valve

Features & Benefits

1. Blow out proof stem construction
2. Anti-static design
3. Locking device (for lever handle operation)
4. ISO 5211 actuator mounting
5. Emergency grease injection (option)
6. PN design can be available

Specit fications

Didtek Trunnion Ball Valves are an excellent choice for on/off service in large and high pressure applications because the ball is anchored at the top and bottom of the design. Didtek manufactures Trunnion Mounted Ball Valves in an extensive range of designs, materials, sizes, pressure classes and end connections that are designed in accordance to ASME B16.34 and where applicable API 608, API 6D or BS EN ISO 17292.

Size Range

2'' to 48''

Body Materials

4A

Temperature Range

-196 to 650°C

Stem Materials

ASTM A479 Type 410
17-4PH
XM-19
ASTM A182 F316

Maximum Allowable Operating Pressure

ASME CL150, 300, 600, 900, 1500, 2500

Seat Materials

RPTFE, Nylon, Devlon, PEEK, Tek-Fil, TFM

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A105 w/ENP
ASTM A350 Gr. LF2 w/ENP
ASTM A182 Gr. F316
ASTM A182 Gr. F316 w/ENP

Body Style

Three Piece

Design Standard

API 6D, BS5351, ASME B16.34

End Connections

Flanged

Testing Standard

API 598, API 6D

Certifications

Lioyd's CE, Lioyd's UKCA, EAC, ISO 9001, API 6D, API 6FA

Ports

Full

Face to Face

ASME B16.10, API 6D

Applications

Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, Emergency Shutdown, Suction and Discharge Isolation, Block and Bypass, Pumping, Compression and Reinjection Units, Metering Stations, Pig Traps, Surge-Relief Skids, Decoking Isolation, Buried Services, Produced Water (Brine) Services
