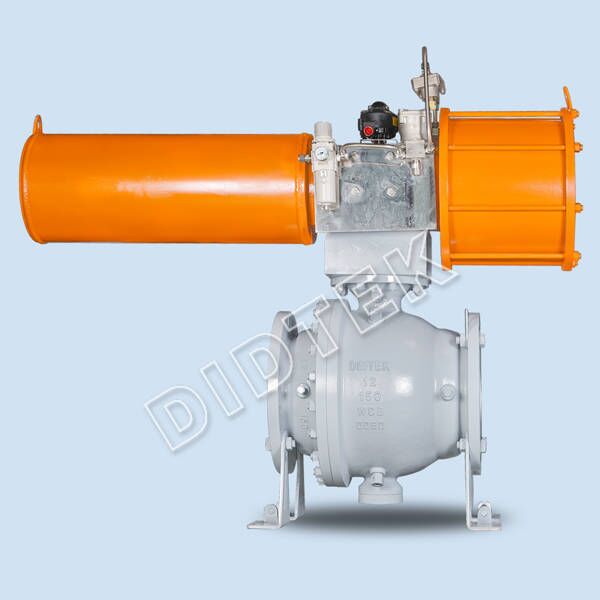

Pneumatic Actuator Low Torque Trunnion Ball Valve

Size Range

2"~48"

Temperature Range

-196℃~650℃

Pressure Rating

ASME CL, 150, 300, 600, 900

Pneumatic Actuator Low Torque Trunnion Ball Valve

Features & Benefits

1. Reliability and Durability
2. Fast Switching Speed
3. Convenient Automation Control
4. Fluid Control Capability
5. Zero Leakage Design
6. Wide Applicability
7. Easy Maintenance

Specit fications

TRBV pneumatic trunnion ball valves find widespread use in industrial applications due to their reliability, quick response, automation capabilities, and broad applicability. Their unique features make them essential components in fluid control systems, providing stable and efficient fluid control solutions across various industries. Whether in the chemical, petroleum, natural gas, power, or other sectors, pneumatic Trunnion ball valves play an indispensable role.

Size Range

2'' to 48''

Body Materials

WCB

Temperature Range

-196 to 650°C

Stem Materials

ASTM A479 Type 410
17-4PH
XM-19
ASTM A182 F316

Maximum Allowable Operating Pressure

ASME CL150, 300, 600, 900

Seat Materials

RPTFE, Nylon, Devlon, PEEK, Tek-Fil, TFM

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A105 w/ENP
ASTM A350 Gr. LF2 w/ENP
ASTM A182 Gr. F316
ASTM A182 Gr. F316 w/ENP

Body Style

Two Pieces

Design Standard

API 6D, BS5351, ASME B16.34

End Connections

Flanged

Testing Standard

API 598, API 6D

Certifications

Lioyd's CE, Lioyd's UKCA, EAC, ISO 9001, API 6D, API 6FA

Ports

Full

Face to Face

ASME B16.10, API 6D

Applications

Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, Emergency Shutdown, Suction and Discharge Isolation, Block and Bypass, Pumping, Compression and Reinjection Units, Metering Stations, Pig Traps, Surge-Relief Skids, Decoking Isolation, Buried Services, Produced Water (Brine) Services
