Features & Benefits

1. Fully captured spiral-wound graphite filled body gasket on split body designs.
2. Locking lever or gear operator standard.
3. Blowout-proof stem
4. Full and standard port available
5. Low Emissions: API 622 certified graphite-based packing for fire-safe designs.
6. PTFE stem seal as well as dual packing configurations are available.
7. Integral ISO mounting pad on cast valves for ease of automation without bracket or separate coupler.
8. Internal and external stem bearings to prevent “side loads” that can cause leakage in the field.

Specit fications

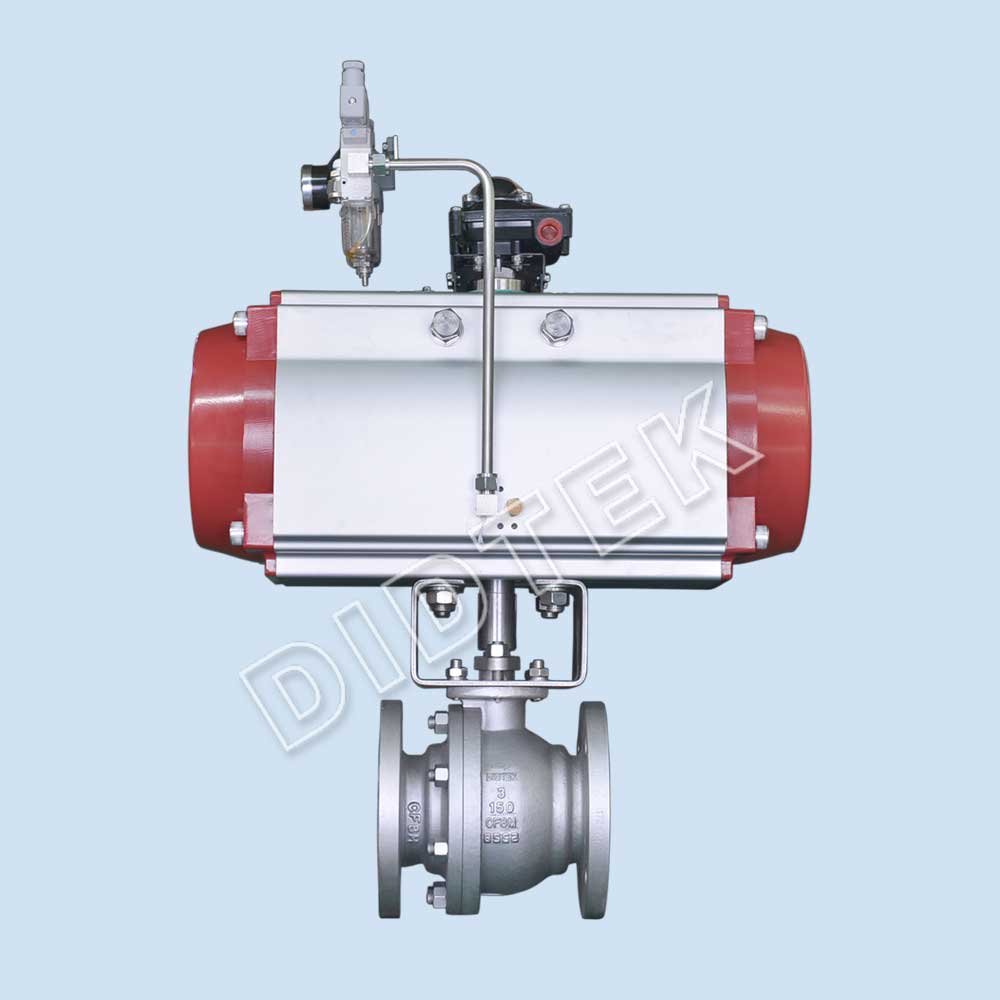

Didtek Cast Floating Metal Seated Ball Valve can withstand hydraulic shock, abrasive fluids, high temperatures and pressures, corrosion, erosion, and other high-service conditions.. Ball valves are suited for fluid flow requiring assured performance, tight shutoff, constant torque and no maintenance.

Size Range

1/2'' to 8''

Body Materials

CF3M

Temperature Range

-196 to 650°C

Stem Materials

Monel

Maximum Allowable Operating Pressure

ASME CL150, 300, 600

Seat Materials

PTFE

Shutoff Rating

Zero Leakage

Ball Materials

ASTM B148 C63200

Body Style

Two Piece

Design Standard

API 6D

End Connections

Flanged

Testing Standard

API 598

Certifications

Lioyd's CE, Lioyd's UKCA, EAC, ISO 9001, API 6D, API 6FA

Ports

Full

Face to Face

ASME B16.10

Applications

Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, Emergency Shutdown, Suction and Discharge Isolation, Block and Bypass, Pumping, Compression and Reinjection Units, Metering Stations, Pig Traps, Surge-Relief Skids, Decoking Isolation, Buried Services, Produced Water (Brine) Services
