Features & Benefits

1. A 3 way ball valve has 3 ports, and is available in T-Port and L-Port Varieties depending on what flow pattern in required.
2. A 3 way valve is ideal if you are looking for a way to divert and control flow without the need for a Tee and multiple valves.
3. These valves can be used as diverters, where flow from one inlet can be diverted to either of the two outlets.
4. They can also be used as input selector where the outlet is fed from either of the other two ports.

Specit fications

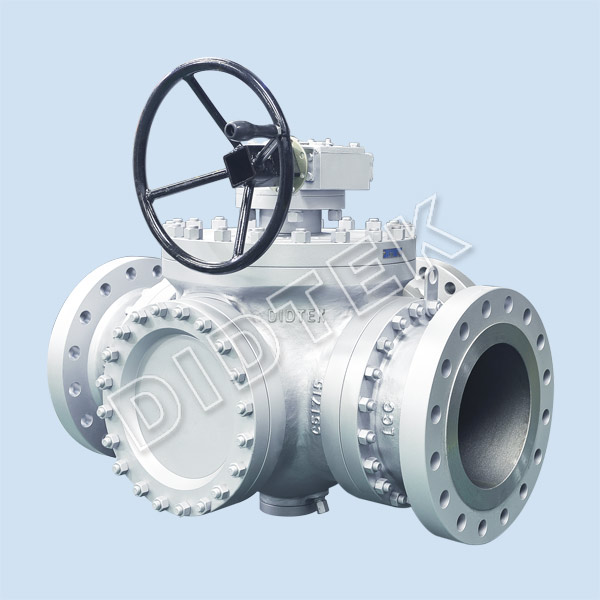

Didtek Three Way Ball Valves are the most popular and economical type of multi-port valves. This style of valve is commonly used in applications with more than one source of media or to divert media in two different directions. Depending on the flow direction, the three ports are assigned as either one outlet and two inlets, or one inlet and two outlets.

Size Range

2'' to 48''

Body Materials

LCC

Temperature Range

-196 to 650°C

Stem Materials

ASTM A479 Type 410
17-4PH
XM-19
ASTM A182 F316

Maximum Allowable Operating Pressure

ASME CL150, 300, 600, 900, 1500, 2500

Seat Materials

RPTFE, Nylon, Devlon, PEEK, Tek-Fil, TFM

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A105 w/ENP
ASTM A350 Gr. LF2 w/ENP
ASTM A182 Gr. F316
ASTM A182 Gr. F316 w/ENP

Design Standard

API 6D, BS5351, ASME B16.34

End Connections

Flanged

Testing Standard

API 598, API 6D

Certifications

Lioyd's CE, Lioyd's UKCA, EAC, ISO 9001, API 6D, API 6FA

Ports

Full

Face to Face

ASME B16.10, API 6D

Applications

Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, Emergency Shutdown, Suction and Discharge Isolation, Block and Bypass, Pumping, Compression and Reinjection Units, Metering Stations, Pig Traps, Surge-Relief Skids, Decoking Isolation, Buried Services, Produced Water (Brine) Services
